Harmar Summit AC Straight Outdoor Stair Lift

Harmar Summit AC Straight Outdoor Stair Lift
Click to enlarge
$3,188.24
Plus Shipping
Select Options

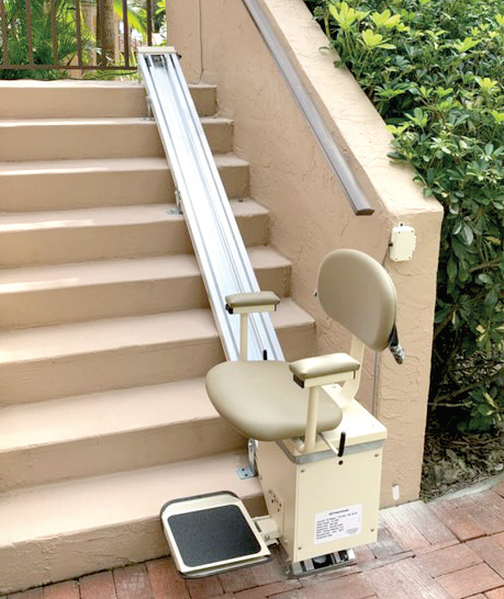

  • Showing Lift Installed on Outdoor Stairs

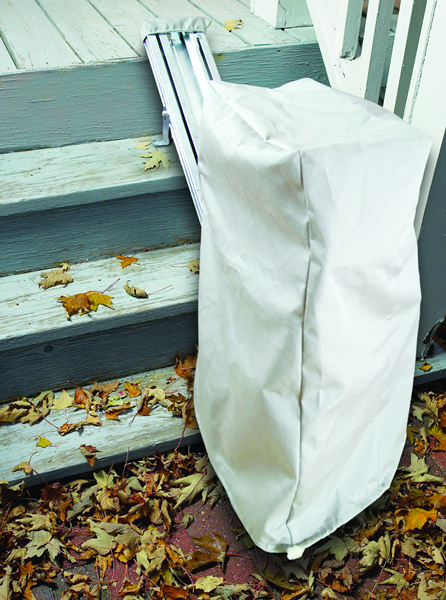

  • Showing with Lift Covered against Weather
The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for protection of outside elements.

Features:
  • Header cover, internal chassis cover and a large weatherproof cover included
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Seat cushions in exterior marine grade vinyl
  • Separate controls at top and bottom of stairs

Questions? Contact Us.

Documents
Specifications

  • Drive Type

    Cable

  • Battery Powered

    No

  • Self Installable

    Yes

  • Basic Installation Included

    No

  • Standard Capacity

    350 lb

  • Max Track Length, Standard

    15.5'

  • Max Track Length, Optional

    25'

  • Unit Footprint, In Use

    24.5"

  • Unit Footprint, Parked

    14"

  • Track Footprint

    12"

  • Track Material

    Aluminum

  • Track Width

    8"

  • Rail Angle, Min

    30°

  • Rail Angle, Max

    45°

  • Seat Width

    17.5"

  • Seat Depth

    14"

  • Swivel Seat

    Yes

  • Flip-Up Seat

    Yes

  • Flip-Up Armrests

    No

  • Call Stations Included

    Wired

  • Constant Pressure Controls

    Yes

  • Footrest Safety Sensor

    Yes

  • Digital Diagnostics Display

    No

  • Key Lock

    No
