Harmar Pinnacle Premium Stair Lift
The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
Questions? Contact Us.
Specifications
Drive Type
Polymer Worm / Worm-Rack
Battery Powered
Yes
Self Installable
Yes
Basic Installation Included
No
Standard Capacity
350 lb
Max Track Length, Standard
15.5'
Max Track Length, Optional
70'
Unit Footprint, In Use
22.5"
Unit Footprint, Parked
11"
Track Footprint
7"
Track Material
Aliuminum
Track Width
4.875"
Rail Angle, Min
32°
Rail Angle, Max
52°
Seat Width
20"
Seat Depth
15.5"
Swivel Seat
Yes
Flip-Up Seat
Yes
Flip-Up Armrests
Yes

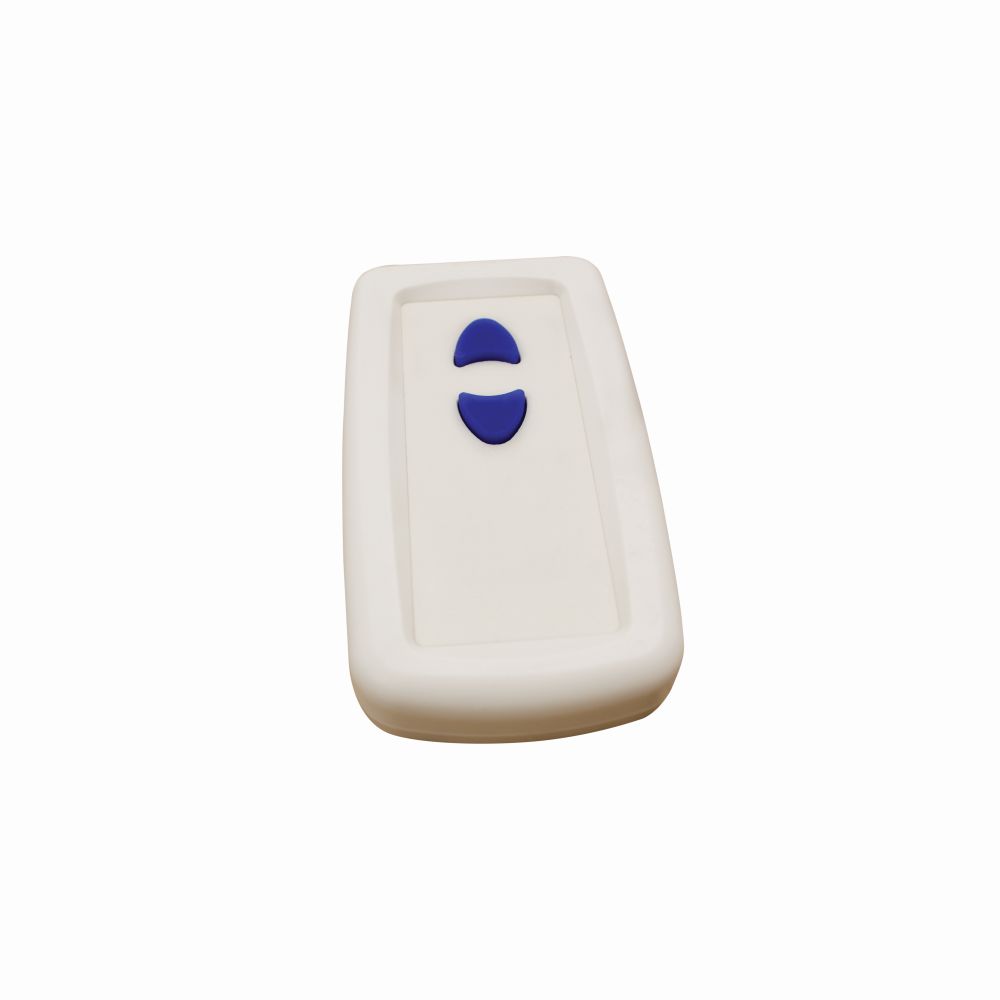

Call Stations Included
Wireless
Constant Pressure Controls
Yes
Footrest Safety Sensor
Yes
Digital Diagnostics Display
No
Power Cord Lengths
10' with the charger box in the middle
Key Lock
Yes
